Braided Sleeving Wrap-around Threading Machine for Wire and Cable
Braided Sleeving Wrap-around Threading Machine for Wire and Cable Braided Sleeving Wrap-around Threading Machine for Wire and Cable Braided Sleeving Wrap-around Threading Machine for Wire and Cable Braided Sleeving Wrap-around Threading Machine for Wire and Cable
  • Braided Sleeving Wrap-around Threading Machine for Wire and Cable

  • Model No: WPM-BZ1

  • This automatic braided sleeving wrap-around machine is suitable for threading woven sleevings onto wire harnesses and cables. hreading braided sleeving for wire and cable machine, machine to wrap-around/install braided sleeving for wires, install braided sleeving onto wire and cable machine, braided sleeving wrap-around machine for wire and cabl, wire insulation nylon braided sleeve wrapping machine
    Model WPM-BZ1
    Applicable sleeving fiber sleeving (woven mesh sleeving), melt cut materials
    Applicable wire range custom type (the wire diameter does not exceed the pipe diameter)
    Applicable guide tube range diameter 12-25mm
    Cutting accuracy ±3MM
    Cutting length 100mm-1200mm
    Speed no less than 1000PCS/hour (depending on sleeving size and manual operation speed)
    Power single phase AC 220V/50HZ
    Energy consumption 400W/Hr
    Operating ambient temperature -5 ° C ~ +40 ° relative
    Relative humidity (40 ~ 90)% RH
    Access gas source 0.4~0.6MPA
    Weight about 80KG
    Dimension

  • Inquiry now
Detailed description

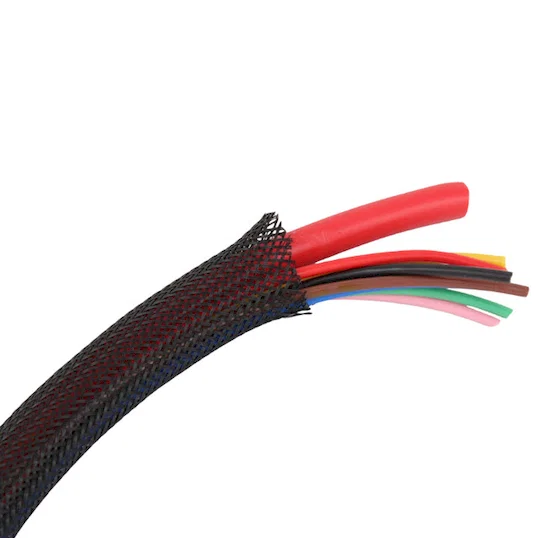

This automatic braided sleeving wrap-around machine is suitable for threading woven sleeves onto wire harnesses and cables.

This automatic braided sleeving wrap-around machine fuses the woven sleeving according to the set length and sends it to the side of the hollow guiding tube for threading.
Fast speed, good threading effect, simple operation, and precise cutting
Suitable for wrapping-around different types of braided sleeving onto wire harnesses and cables
It consists of a fine-tunable photoelectric control system and a PLC control system. The cutting length can be set, and the cutting performance is stable.
Applicable products: automotive wiring harness, electronic wire, medical wire, metal, wire, cable, etc.
Applicable industries: wire harness processing plant, electronics factory, electrical appliances, hardware, etc.


Model

WPM-BZ1

Applicable sleeving

fiber sleeving (woven mesh sleeving), melt cut materials

Applicable wire range

custom type (the wire diameter does not exceed the pipe diameter)

Applicable guide tube range diameter

diameter 12-25mm

Cutting accuracy

±3MM

Cutting length

100mm-1200mm

Speed

no less than 1000PCS/hour (depending on sleeving size and manual operation speed)

Power single

single phase AC 220V/50HZ

Energy consumption

400W/Hr

Operating ambient temperature

-5 ° C ~ +40 ° relative

Relative humidity

(40 ~ 90)% RH

Access gas source

0.4~0.6MPA

Weight

about 80KG

Dimension

500W*1230L*1115H(mm) (subject to actual production)

Note

Special materials can be customized.
