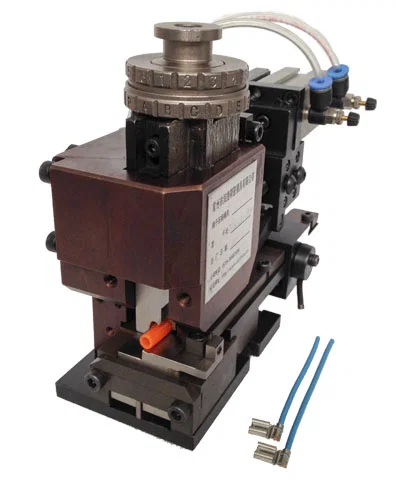

TA-20F European pneumatic Crimping Applicator（Flag terminal）

Special design for the Flag terminal.

With pneumatic end feeding way.High precise and stable.

High precise pressure continuous adjustment plate design,easy to adjustment.

Perfectly matching Komax, Tyco, Amp, Mecal, Schafer, Etco, Schleuniger, Molex, Jst, South Korea and various European and American brands of semi-automatic and fully automatic crimping machine.

TA-20F
Feeding way:                               End feeding
Stoke:                                        40mm
Shutheight:                                 135.8mm
Thickness of terminal:                   1.5mm
Wire size:                                    0.8-6mm²（AWG9-AWG30)
Accuracy of adjustment:               ±0.02mm
Scope of adjustment:                   Max. 3mm
Material:                                     Tool steel
Processing Craft:                          surface blackening
Applicable Type:                          Semi-automatic & fully automatic crimping machine of brand
                                                    Komax,Tyco,Amp,Mecal,Schafer,Etco,Schleuniger,Molex,Jst.
Weight:                                      4 KG
Dimension(mm):                          L195 X  H 155 X W70
