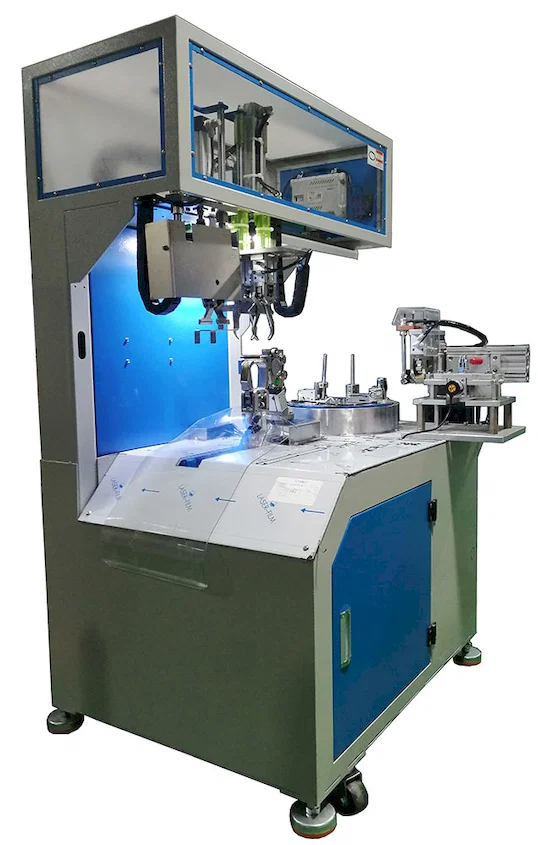

Rope coiling heat Cutting binding machine WPM-81ML
Rope coiling heat Cutting binding machine WPM-81ML Rope coiling heat Cutting binding machine WPM-81ML
  • Rope Coiling Heat Cutting Binding Machine WPM-81ML

  • Item No : WPM-81ML

  • Rope Coiling Heat Cutting Binding Machine, Automatic Coiling Machine, Wire Measuring & Coiling Machine

    Applicable Wire Diameter 4 Mm

    Cutting Line Length: 1.5-5m
    Winding Tie Shape: Single Tie With 8 Characters, Head And Tail With The Same Side
    Winding Spacing: 80-120mm
    Tie Diameter: ≤40mm
    Head And Tail Length: 130-150mm
    Production Efficiency: ≤800PCS/H(1.8m)
    Applicable Binding Tape-coated Iron Core ≤5KG/ Roll
    Applicable Pressure 0.5-0.65mpa
    Applicable Power Supply 220V/50Hz
    Machine Power: 2800W
    Machine Weight: About 230KG
    Machine Size: 1060L*800W*1600H

  • Inquiry now
Detailed description
Rope coiling heat Cutting binding machine, automatic coiling machine, wire measuring & coiling machine
Technical parameters:
Applicable wire diameter 4 mm
Cutting line length: 1.5-5m
Winding tie shape: single tie with 8 characters, head and tail with the same side
Winding spacing: 80-120mm
Tie diameter: ≤40mm
Head and tail length: 130-150mm
Production efficiency: ≤800PCS/H(1.8m)
Applicable binding tape-coated iron core ≤5KG/ roll
Applicable pressure 0.5-0.65mpa
Applicable power supply 220V/50Hz
Machine power: 2800W
Machine weight: about 230KG
Machine size: 1060L*800W*1600H
automatic coiling machine wire measuring & coiling machine
