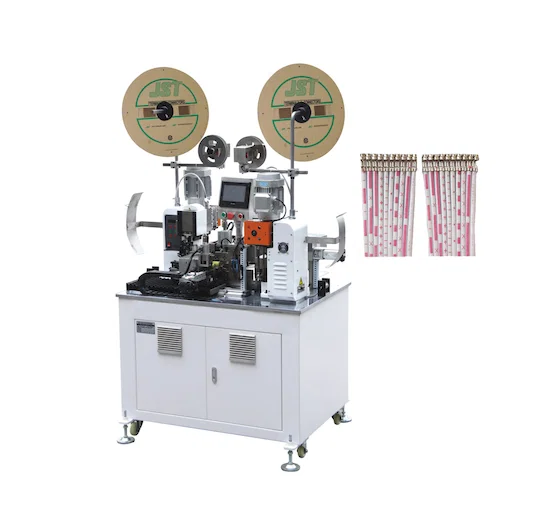

Automatic Both Ends Flat Ribbon Cable Cutting Stripping And Crimping
Automatic Both Ends Flat Ribbon Cable Cutting Stripping And Crimping
  • Automatic Both Ends Flat Ribbon Cable Cutting Stripping And Crimping

  • Model No: WPM-SP20

  • Flat Cable Crimping Machine, Ribbon Cable Crimping Machine, Double Head Ribbon Cable Crimping Machine
    Features
    1: This machine adopts the Japanese Panasonic control system and Panasonic servo to achieve precision, high efficiency, and stability.
    2: Adjust by touch screen control, including line length, stripping length, terminal position, etc., all touchscreen
    adjustments; the entire operation process will be seen at a glance, and multiple devices can be operated by one person.
    3: Product function: Double-end crimping terminal; applied to the cable, the electronic wire can be processed on this device, without the need to replace accessories, only minor adjustments can be made, achieve a multi-purpose machine, and reduce equipment investment.
    4: Applicable terminal model, PH, XH, ZH, SCN, SM, VH, DuPont, and another continuous terminal crimping.
    5: Good stability, the use of eccentric shaft, balanced terminal pressure, neat pressing, high yield, cam transmission structure,
    control branching movement is stable and fast.
    6: High efficiency, the pressing speed can reach 22000pcs H (max), and the machine can work 24 hours.
    7: Special function:
    (1) 2pin cable can output 5pcs at the same time.
    (2) The A and B ends are separated by positive and negative pressure ends, and the Bend can be half or fully stripped.
    (3) Steering crimping, two-end crimping, single-end crimping, interval crimping, positive and negative crimping, etc.

  • Inquiry now
Detailed description
Automatic Both Ends Flat Ribbon Cable Cutting Stripping And Crimping Machine,

Flat Cable Crimping Machine, Ribbon Cable Crimping Machine, Double Head Ribbon Cable Crimping Machine

Features

1: This machine adopts the Japanese Panasonic control system and Panasonic servo to achieve precision, high efficiency, and stability.

2: Adjust by touch screen control, including line length, stripping length, terminal position, etc., all touch screen

adjustments; the entire operation process will be seen at a glance, and multiple devices can be operated by one person.

3: Product function: Double-end crimping terminal; applied to the cable, the electronic wire can be processed on this device, without the need to replace accessories, only minor adjustments can be made, achieve a multi-purpose machine, and reduce equipment investment.

4: Applicable terminal model, PH, XH, ZH, SCN, SM, VH, DuPont, and another continuous terminal crimping.

5: Good stability, the use of eccentric shaft, balanced terminal pressure, neat pressing, high yield, cam transmission structure,

control branching movement is stable and fast.

6: High efficiency, the pressing speed can reach 22000pcs H (max), and the machine can work 24 hours.

7: Special function:

(1) 2pin cable can output 5pcs at the same time.

(2) The A and B ends are separated by positive and negative pressure ends, and the Bend can be half or fully stripped.

(3) Steering crimping, two-end crimping, single-end crimping, interval crimping, positive and negative crimping, etc.


8: Commissioning: Commissioning is simple, with full servo control of wire delivery, branch length, cutting, and stripping.

Specification

Item value

Place of Origin China

Usage Cutting Stripping Crimping

Warranty 1 Year

Efficiency 22000pcs/H (20pin)

Cutting length 55-850mm customized

Stripping length A side 0-7mm, B side 0-9mm

Applicable wire of cable OD 0.8-2.0mm

Maximum cable width 20mm

Maximum cable pin 20pin

Wire diameter 28-18AWG ribbon cable, single wire

Crimping force 1.5T/2T customized

The main selling point is Servo motor control feeding, splitting, cutting, and stripping.

Machine size L1800*W1400*H1550mm

Net Weight 450KG

Voltage AC220V 50HZ

Power 4kw

Air source 0.4-0.6MPa

Installation space 2000*3000mm

Working environment level and strong ground, level and strong ground, dry level and strong ground, level and strong ground, dry level and strong ground, level and strong ground, dry level and strong ground, level and strong ground, dry, without direct sunlight
