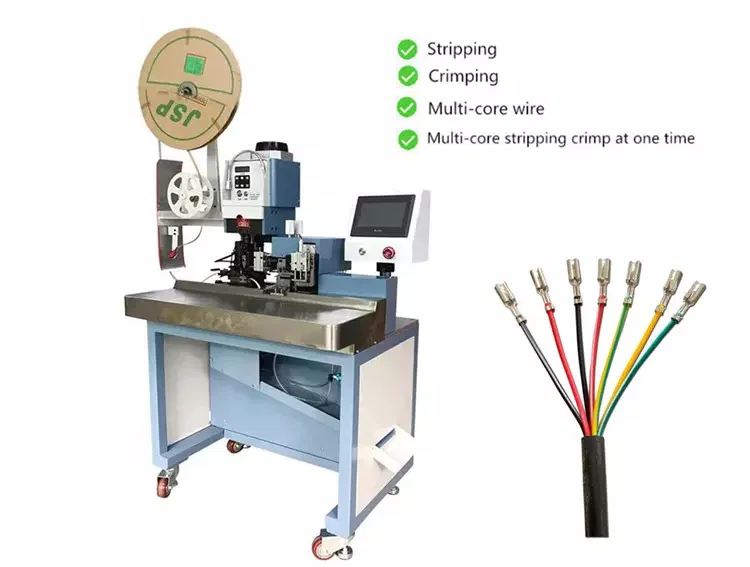

Multi-core sheathed cable stripping and ferrules crimping machine
Multi-core sheathed cable stripping and ferrules crimping machine
  • Multi-core sheathed cable stripping and ferrules crimping machine

  • Model No: WPM-32

  • Wire Stripping Crimping Terminal, Crimping Terminal Machine, Cable Strip And Crimp Equipment, Multi-core Cablestripping Crimping Machine, Cable Inner Wires Stripping Crimping Machine, Inner Wires Stripping Crimping Machine
    The multi-core sheathed cable stripping and ferrules crimping machine are specially designed for processing the core wires of multi-conductor sheathed cable. The outside jacket should be pre-stripped before using this machine. the advanced frequency conversion technology, and intelligent control, when welded, the machine starts to work, compared with the traditional terminal machine, the noise is smaller, power consumption is reduced by 50%, installation mold is more quick and convenient, avoid the common faults of the traditional terminal, such as clutch, electromagnet and so on. * The multi-core sheathed cable stripping and ferrules crimping machine can complete wire feeding, inner core stripping, and terminal crimping accurately and continuously.
    * This machine is specially designed for processing the core wires of multi-conductor sheathed cables. The outside jacket should be pre-stripped before using this machine, the operator only needs to place the cable in the working position, then the machine will strip the wire and crimp the terminal automatically. It greatly improves the multi-core sheathed cable processing efficiency.
    * The control system adopts PLC and color touch screen, the moving parts are driven by servo motors, simple operation, and high processing accuracy.

    <>

  • Inquiry now
Detailed description
Wire Stripping Crimping Terminal, Crimping Terminal Machine, Cable Strip And Crimp Equipment, Multi-core Cablestripping Crimping Machine, Cable Inner Wires Stripping Crimping Machine, Inner Wires Stripping Crimping Machine
The multi-core sheathed cable stripping and ferrules crimping machine are specially designed for processing the core wires of multi-conductor sheathed cable. The outside jacket should be pre-stripped before using this machine. the advanced frequency conversion technology, and intelligent control, when welded, the machine starts to work, compared with the traditional terminal machine, the noise is smaller, power consumption is reduced by 50%, installation mold is more quick and convenient, avoid the common faults of the traditional terminal, such as clutch, electromagnet and so on. * The multi-core sheathed cable stripping and ferrules crimping machine can complete wire feeding, inner core stripping, and terminal crimping accurately and continuously.
* This machine is specially designed for processing the core wires of multi-conductor sheathed cables. The outside jacket should be pre-stripped before using this machine, the operator only needs to place the cable in the working position, then the machine will strip the wire and crimp the terminal automatically. It greatly improves the multi-core sheathed cable processing efficiency.
* The control system adopts PLC and color touch screen, the moving parts are driven by servo motors, simple operation, and high processing accuracy.

Model WPM-32
Cable type Multiple conductor cable, flat cable, etc.
Cable outer diameter 1.3 - 32 mm (0.052 - 1.259 inches) (larger cable can be customized)
Conductor size 30 - 16 AWG
Conductor numbers 2 - 20 (depending on the cable type)
Stripping length Depends on conductor size
Crimping force 1.5 T
Applicator OTP
Productivity 3600 pcs. /h (depending on the wire type)
Power supply 110, 220 V (50 - 60 Hz)
Power 750 W
Dimension (L * W * H) 800 * 600 * 1250 mm (31.50 * 23.62 * 49.21 inches)
Net weight 145 kg (319.67 lb)

 Wire Stripping Crimping Terminal, Crimping Terminal Machine, Cable Strip And Crimp Equipment, Multi-core Cablestripping Crimping Machine, Cable Inner Wires Stripping Crimping Machine, Inner Wires Stripping Crimping Machine
Wire Stripping Crimping Terminal, Crimping Terminal Machine, Cable Strip And Crimp Equipment, Multi-core Cablestripping
 Wire Stripping Crimping Terminal, Crimping Terminal Machine, Cable Strip And Crimp Equipment, Multi-core Cablestripping Crimping Machine, Cable Inner Wires Stripping Crimping Machine, Inner Wires Stripping Crimping Machine
sample of Wire Stripping Crimping Terminal, Crimping Terminal Machine, Cable Strip And Crimp Equipment, Multi-core Cablestripping Crimping Machine, Cable Inner Wires Stripping Crimping Machine, Inner Wires Stripping Crimping Machine
