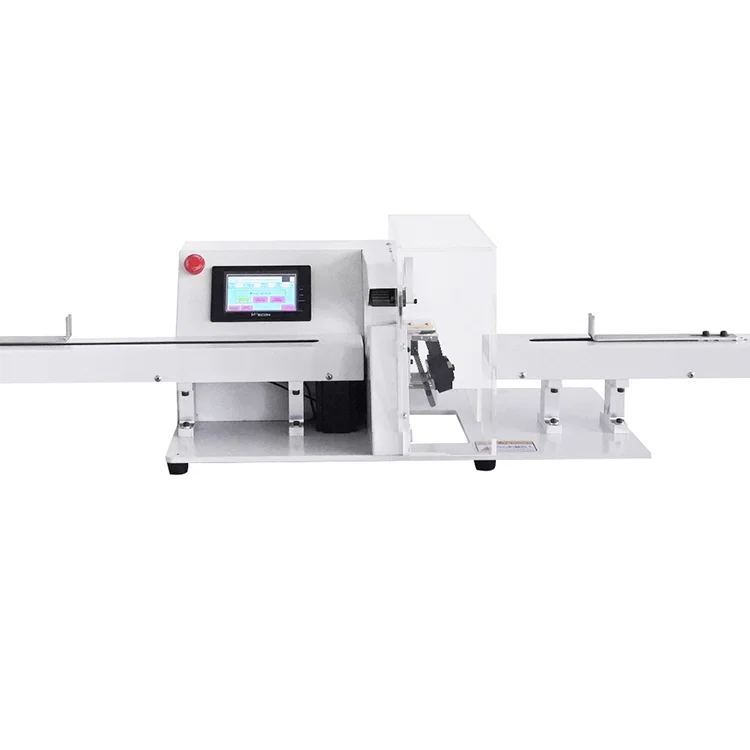

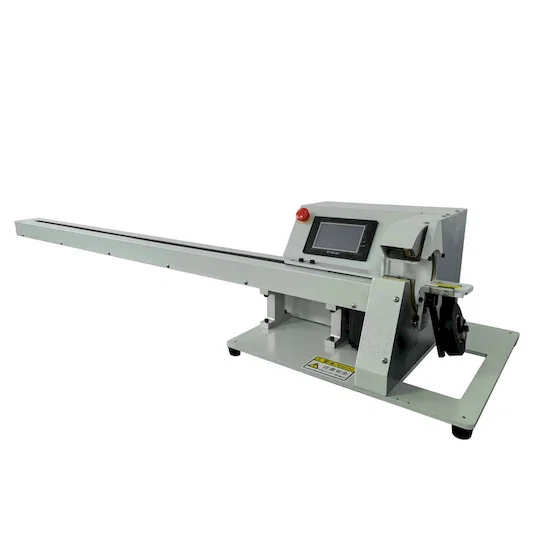

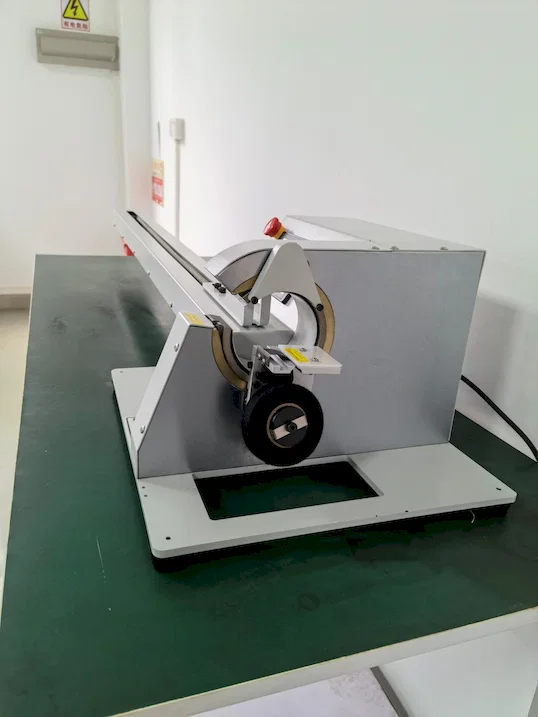

Tape Wrapping Machine with Pull Wire WPM-303K

WPM-303K Automatic Taping wrapping machine - Precision, Versatility, and Extended Length Capability

Introduction:

Introducing the WPM-303K Taping wrapping machine with a pull-wire, a highly advanced and versatile solution designed to revolutionize your tape application process. This exceptional machine, also known as a Tape Winding Machine and Winging Machine, delivers precision and efficiency in both spot and continuous taping methods. As a leading Automatic Tape Winding Machine, the WPM-303K is compatible with a wide array of tape materials, including flannel, acetate, electrical, and polyester tapes – all without release paper. Experience smooth, wrinkle-free wrapping with precise overlap and an extended wire pulling length capability, maximizing your production output and product quality.

Key Features for Precision and Versatile Tape Application:

The WPM-303K Taping wrapping machine is engineered with a comprehensive set of features for superior performance and user-friendliness:

• Extended Wire Pulling Length: Features an impressive wire pulling length of 1,050mm (customizable to longer lengths), enabling processing of longer wire harnesses and improving workflow efficiency.
• Adjustable Taping Density for Customized Wraps: Offers taping density adjustable settings, allowing users to precisely control the tightness and overlap of the tape wrapping to meet specific application requirements.
• Dual Taping Methods: Spot and Continuous: Provides flexibility with taping methods, supporting both spot taping for targeted applications and continuous taping for wrapping entire wire harness sections, catering to diverse needs.
• Wide Tape Material Compatibility: Compatible with different types of tape materials without release paper, including popular options like Flannel tape, acetate tape, electrical tape, and polyester tape, offering exceptional versatility and material choices.
• Flat and Wrinkle-Free Wrapping Quality: Ensures high-quality wrapping results, producing flat, no wrinkles tape application, enhancing the aesthetic appeal and functional reliability of the wire harness.
• Precise Overlapping Cloth Tape Winding: Designed to ensure the winding of the cloth tape is overlapped with the previous circle by 1/2, creating a secure and consistent tape wrap with optimal material usage and durability.
• Continuously Adjustable Host Speed: Offers a host speed range of 300-2,500 ret/min, continuously adjustable to optimize the taping speed for different wire types, tape materials, and operator preferences, maximizing throughput.

Wide Range of Applications Across Wire Harness Assembly:

This versatile Tape Winding Machine is ideally suited for a broad spectrum of wire harness taping applications across industries such as:

• Automotive Wire Harnesses
• Appliance Wire Harnesses
• Industrial Control Panels
• Robotics and Automation Cabling
• Telecommunications Wiring
• And any application requiring precise and efficient tape wrapping of wire harnesses

Technical Specifications for High-Performance Tape Wrapping:

• Model: WPM-303K Taping wrapping machine with a pull-wire
• Machine Type: Automatic Tape Winding Machine / Winging Machine
• Key Functions: Taping wrapping machine, Tape Winding Machine, Winging Machine, Automatic Tape Winding Machine (Precision, Versatile, Extended Length)
• Wire Pulling Length: 1,050mm (Customizable Longer Lengths)
• Taping Density: Adjustable
• Taping Methods: Spot Taping, Continuous Taping

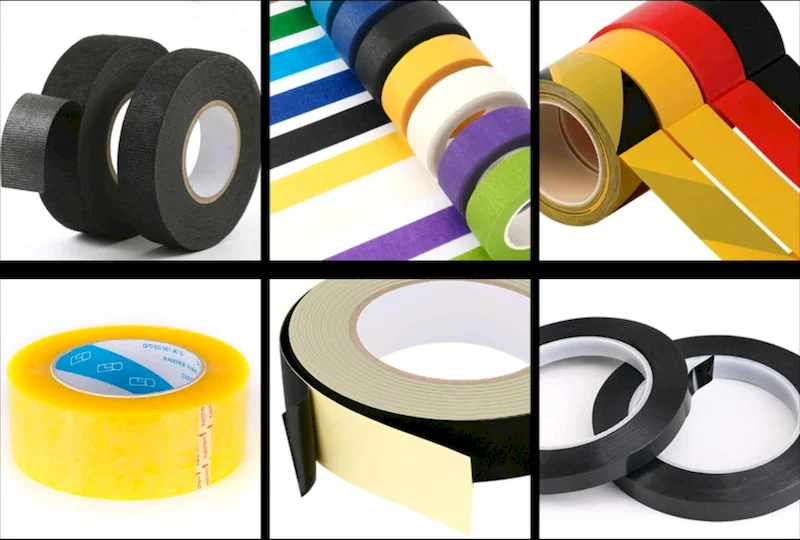

• Applicable Tapes: Flannel tape, acetate tape, electrical tape, polyester tape, etc. (No Release Paper Required)
• Tape Width Compatibility: 5-25mm (Customizable Wider Sizes Available)
• Tape Inner Hole Size Compatibility: Ф37， Ф32 (Standard Core Sizes)
• Host Speed: 300-2,500 ret/min (Continuously Adjustable)
• Power Supply: AC220V/DC24V 50/60HZ (Selectable Voltage)
• Weight: 36KG (Robust and Stable)
• Dimension: 1,470mm * 380mm * 280mm (LxWxH) (Extended Length Design)

Conclusion:

Invest in the WPM-303K Taping wrapping machine to revolutionize your wire harness taping process. This high-precision and versatile Automatic Tape Winding Machine, also a highly efficient Winging Machine and Tape Winding Machine, delivers unmatched performance and flexibility, making it the ideal solution for maximizing your production efficiency and product quality. Contact us today to learn more about how the WPM-303K can transform your wire harness manufacturing and elevate your operational capabilities!
