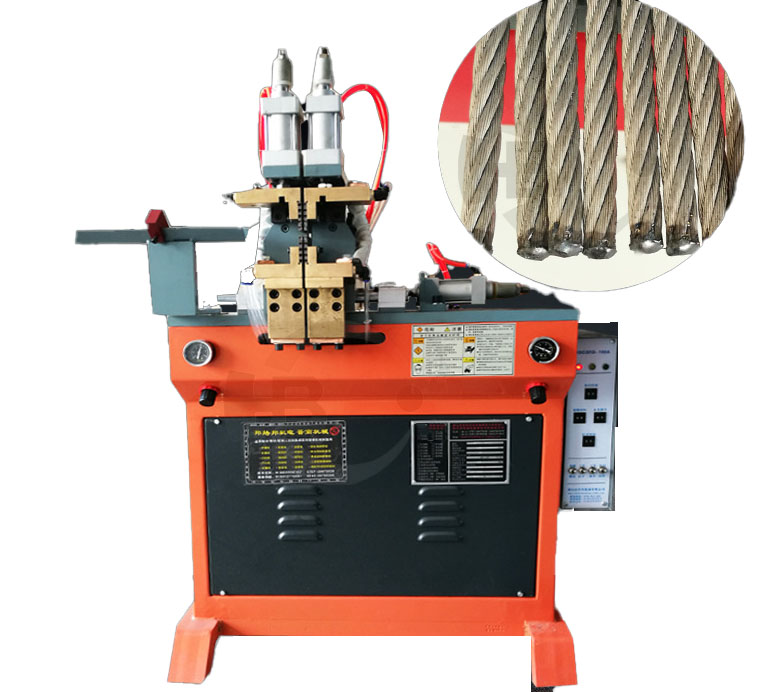

Semi-automatic wire rope fusing machine WPM-QF
Semi-automatic wire rope fusing machine WPM-QF
  • Semi-automatic wire rope fusing machine WPM-QF

  • Model No: WPM-QF
  • Parameter Model WPM-QF
    Input voltage 380 V/50Hz or 220V/50HZ
    Rated power 40KW
    Fuse wire diameter ≤Φ12 mm
    Efficiency (fusing working time does not include preparation working time such as taking the workpiece) approx. 30 times/min Wire rope fusing diameter specification 2-6.5mm (40AB) 2-10mm (80AB)
    Pressurized mode Air Pressure
    Delivery time 10 business days. 8MM automatic fuse breaker in stock, other specifications of models and accessories need to be customized.
    Cylinder stroke 25MM
    Fuse back head Flat head
    Controller Industrial control system + fuse breaker system
  • Inquiry now
Detailed description

The semi-automatic wire rope fusing machine is a highly efficient and reliable piece of equipment used in various industries. It is designed to fuse wire ropes together, ensuring their strength and durability for applications such as lifting heavy loads, construction projects, and transportation.

This advanced machine utilizes cutting-edge technology to automate the process of fusing wire ropes. With its user-friendly interface and intuitive controls, operators can easily set parameters such as temperature, pressure, and fusion time to achieve precise results every time.

One of the key features of this machine is its semi-automatic operation. While it requires human intervention for loading the wire ropes into the machine, once initiated, it carries out the fusion process automatically. This not only saves time but also reduces labor costs while maintaining consistent quality.

The fusing process itself involves heating two ends of wire ropes until they reach a molten state before pressing them together under controlled pressure. The result is a seamless joint that exhibits exceptional tensile strength and resistance to wear and tear.

Furthermore, this versatile machine can handle various types of wire ropes with different diameters and materials including steel cables or synthetic fibers like nylon or polyester. Its adaptability makes it suitable for use in diverse industries ranging from marine operations to mining activities.

In addition to its efficiency in joining wires securely, this machine also prioritizes safety measures. Equipped with multiple sensors and alarms, it ensures that any abnormalities are detected promptly during operation. This helps prevent accidents or damage caused by overheating or excessive pressure buildup.

Overall, the semi-automatic wire rope fusing machine plays an indispensable role in enhancing productivity while maintaining high-quality standards across industries that rely on strong connections between wires.

Parameter Model

WPM-QF

Input voltage

380 V/50Hz or 220V/50HZ

Rated power

40KW

Fuse wire diameter

≤Φ12 mm

Efficiency

(fusing working time does not include preparation working time such as taking the workpiece) approx. 30 times/min Wire rope fusing diameter specification 2-6.5mm (40AB) 2-10mm (80AB)

Pressurized mode

Air Pressure

Delivery time

10 business days. 8MM automatic fuse breaker in stock, other specifications of models and accessories need to be customized.

Cylinder stroke

25MM

Fuse back head

Flat head

Controller

Industrial control system + fuse breaker system

Major components

The mechanical production is more stable, and the electrical control parts and mechanical parts manufacturers selected by the machinery are all manufactured by international or domestic famous brand manufacturers. To ensure more extended service life of machinery equipment maintenance is easier: the design of machinery taking into account the convenience of maintenance personnel, so the use of integrated control and component assembly. Take full account of the convenience of production maintenance.

The machinery is more firm and durable, and the overall structure is more reasonable and beautiful.

Payment method and delivery time

The deposit is 50%, and the balance shall be paid off before delivery after the machine is finished. After the machinery is done, the buyer needs to send the wire rope to test the machine, the test machine proofing sent video to the buyer for confirmation, after confirmation can leave the factory. The steel wire rope needs to be provided by you.
