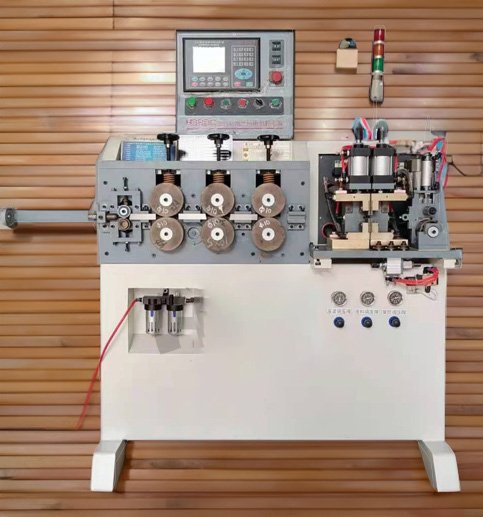

Three-axis full automatic wire rope fusing machine WPM-80SF
Three-axis full automatic wire rope fusing machine WPM-80SF
  • Three-axis full automatic wire rope fusing machine WPM-80SF

  • Model No: WPM-80SF
  • Three-axis wire rope fuse breaker
    Machining custom Yes
    Type 12MM wire rope fuse breaker
    Model WPM-80SF
    Alias Fuse Breaker
    Purpose fuse
    Motor power - (kw)
    Overall dimensions 1450X980X1650mm (mm)
    Weight 0.45 (t)
    Size 1450X980X1650mm
  • Inquiry now
Detailed description

Primarily utilized in the aviation, automobile, lock, rigging, traction, bicycle, elevator, decoration and other industries to enhance product quality, minimize production expenses and augment output as well as production capacity of primary equipment.
Three-axis wire rope fuse breaker

Parameter Model

WPM-40SF

WPM-80SF

Input voltage

380 V/50Hz or 220V/50HZ

Rated power

40KW

80KW

Fuse wire diameter

≤Φ6.5 mm

≤ Φ10.5mm

Efficiency

(fusing working time does not include preparation working time such as taking the workpiece) approx. 30 times/min Wire rope fusing diameter specification 2-6.5mm (40AB) 2-10mm (80AB)

Pressurized mode

Air Pressure

Delivery time

10 business days. 8MM automatic fuse breaker in stock, other specifications of models and accessories need to be customized.

Cylinder stroke

25MM

Fuse back head

Flat head

Controller

Industrial control system + fuse breaker system

Major components

The mechanical production is more stable, and the electrical control parts and mechanical parts manufacturers selected by the machinery are all manufactured by international or domestic famous brand manufacturers. To ensure more extended service life of machinery equipment maintenance is easier: the design of machinery taking into account the convenience of maintenance personnel, so the use of integrated control and component assembly. Take full account of the convenience of production maintenance.

The machinery is more firm and durable, and the overall structure is more reasonable and beautiful.

Payment method and delivery time

The deposit is 50%, and the balance shall be paid off before delivery after the machine is finished. After the machinery is done, the buyer needs to send the wire rope to test the machine, the test machine proofing sent video to the buyer for confirmation, after confirmation can leave the factory. The steel wire rope needs to be provided by you.

Design principle and

Workflow

WPM-40SF type and WPM-80SF type its working principle is to use the resistance heating method to heat the wire rope alloy wire rod, rod, pipe, plate, etc. to a certain temperature, and then force open, so that the wire rope is blown open and the head is not scattered. The workpiece clamping and forcing open the application of pneumatic mode. The movement of the active electrode is guided by precision limit bearing, which has high motion accuracy and small friction resistance.
